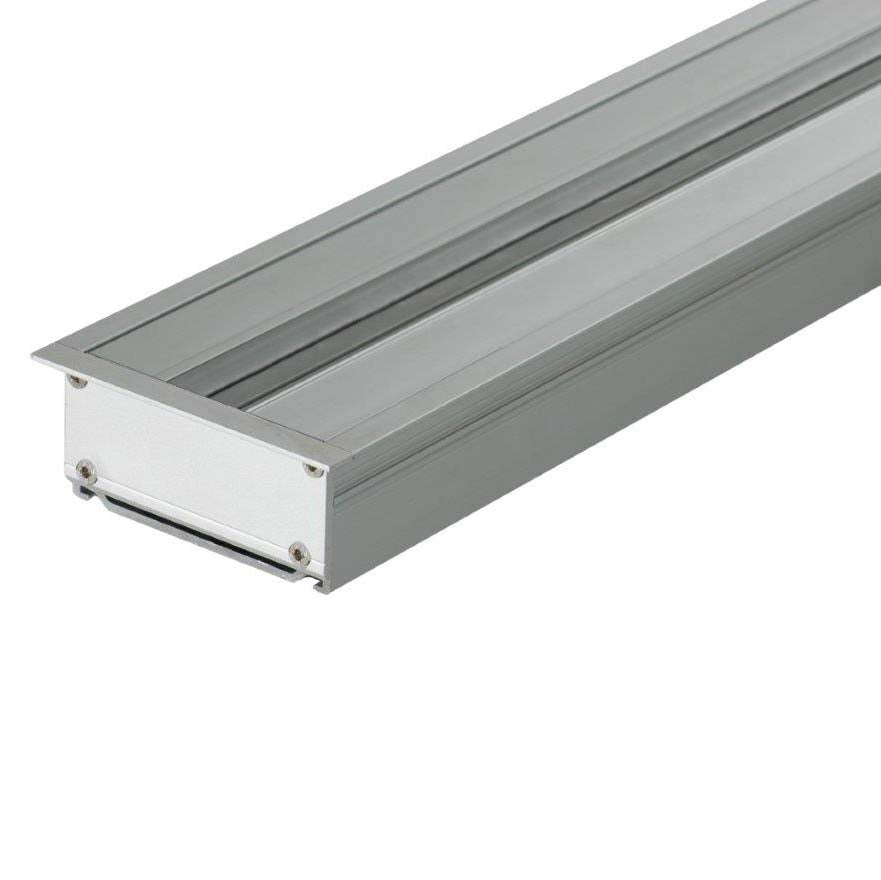

RH2 - Recessed Cable Trunking
- Furniture mounting – For desks, cabinets and large conference tables. Mounting width of 7 cm, total width of 8 cm and 2 mm protrusion after mounting.
- Modular installation – 150 cm cut-to-size blank cable duct, to be completed according to your project.
- Powered areas on demand – Combine SFC3 segments with cut-to-size SFC2D blanking plates to achieve the desired length.
71,16 €
- Free of Charge
- Immediate response
- 100% secure
In stock - Ready to be shipped
Custom lengths for your furniture and large meeting tables
Create an integrated electrical installation for your furniture. The RH2 trunking can be cut to fit the furniture, then accepts SFC3 electrical segments in the required locations. Complete the non-electrified sections with SFC2D blanking panels cut to the desired length. A solution designed for offices, workstations, and large meeting room tables.
A modular design adapted for recessed installation
Just like the SH1 trunking, you choose the areas to electrify and the sections to blank off. With the RH2, the project remains integrated into the furniture.
A blank trunking to configure
Supplied in a cuttable 150 cm length, the trunking forms the profile of your installation. SFC3 segments, SFC2D blanking panels, end caps, and other necessary components must be selected separately.

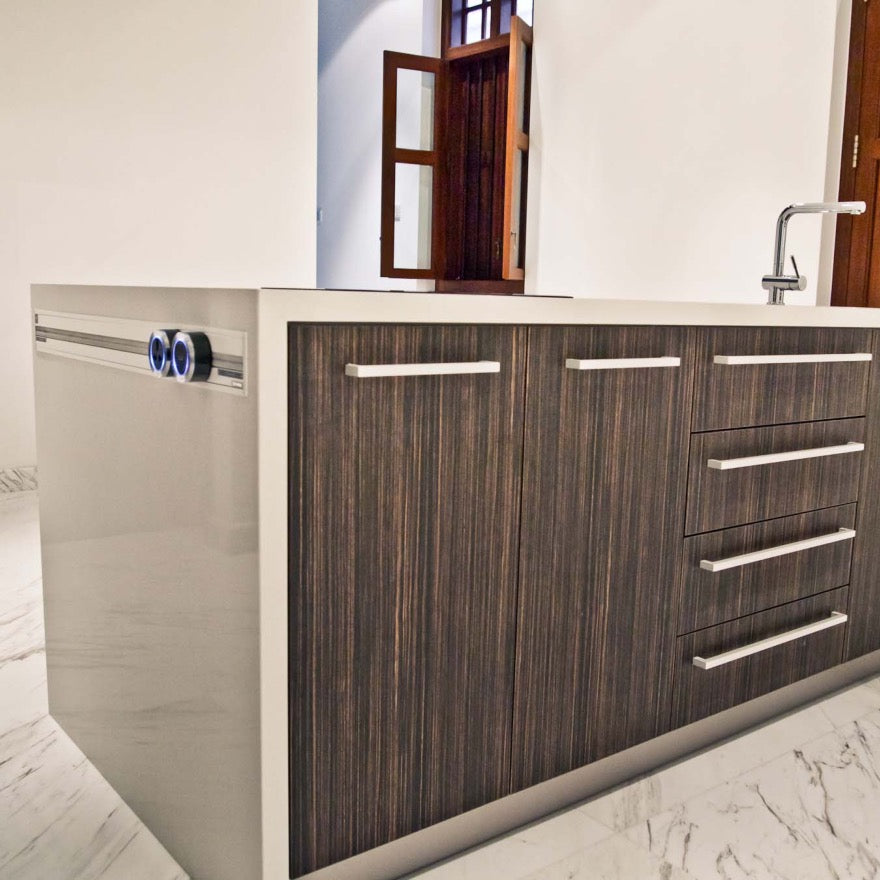

A furniture-recessed project
Adapt the length and the distribution of electrified areas to your furniture or table. The RH2 is not presented as a room-perimeter solution: its use is focused on integration into furniture.
Configure the useful areas of your table
Large meeting tables
Provide electrified areas where participants need to plug in their devices. The intermediate sections are closed with SFC2D.
Desks and workstations
Integrate a length adapted to the furniture and place the SFC3 segments according to the workstation layout.
Custom-built furniture
Configure the installation according to the furniture dimensions and power requirements, without electrifying the entire length.
A discreet but visible finish
The recess width is 7 cm, for a total profile width of 8 cm. After installation, it protrudes 2 mm from the support: it is therefore neither invisible nor completely flush.
How to combine SFC3, SFC2D and DS4?
| Component | Role in your installation |
|---|---|
| RH2 trunking | Aluminium profile designed to be recessed into furniture. |
| SFC3 electrical segment | Creates the electrified areas designed to receive EUBIQ sockets. |
| SFC2D blanking panel | Closes the non-electrified sections. It can be cut to complete the SFC3 and achieve the desired final length. |
| DS4 for RJ45 | Allows RJ45 sockets to be integrated in a fixed location between two SFC3 segments or at the end of the installation, instead of a section of SFC2D. The RJ45 sockets installed this way cannot be moved along the rail. |
| End caps | Close the ends of the profile to complete the installation. |
Example for a large meeting table: provide several SFC3 areas at the locations where participants plug in, then complete the intermediate sections with fitted SFC2D blanking panels. If you want RJ45 connections, reserve their fixed location using DS4 between two SFC3 segments or at the end of the installation, replacing the SFC2D in that location.
RH2 profile specifications
Before machining the furniture: distinguish the 7 cm recess width from the 8 cm total profile width. Check the other dimensions of the housing, clearances, and fixings using the technical documentation and the selected configuration.
Components to provide
Configure your project with the RH2 trunking, SFC3 electrical segments, SFC2D blanking panels, end caps, EUBIQ sockets, and the fixing and connection components suited to your configuration. Add DS4 if you want to integrate RJ45 sockets in fixed locations between two SFC3 segments or at the end of the installation, instead of the SFC2D. The blank trunking is not a pre-electrified rail.
SFC3 areas are designed for EUBIQ sockets, including models corresponding to the different types of sockets by country. They do not directly accept standard wall sockets from other brands.
Prepare your custom installation
Define the location in the furniture
Measure the useful length and check the material, available thickness, fixing, and power supply routing before preparing the housing.
Distribute the electrified areas and RJ45 sockets
Place the SFC3 segments according to the workstations to be powered and provide SFC2D for the remaining sections. For the RJ45 sockets, reserve fixed locations using DS4 between two SFC3 segments or at the end of the installation, instead of a section of SFC2D.
Adjust the lengths
The aluminium trunking is cut with a hacksaw. For a more professional cut, use a circular saw equipped with a blade suited for aluminium. Also cut the SFC2D blanking panels to the required lengths. Secure the pieces, follow the tool's safety instructions, and deburr the edges. Do not confuse these adjustments with cutting the SFC3 electrical segment.
Prepare the housing and fix the profile
Provide a recess width of 7 cm. Follow the other dimensions and requirements of the technical documentation for machining and fixing. The total profile width is 8 cm and, after installation, it protrudes 2 mm from the support.
Assemble and connect
Install the components and end caps according to their documentation. The electrical installation must be carried out without power by a person qualified in electricity.
Frequently asked questions
What is the common point with the SH1 trunking?
The modular design principle is the same: SFC3 areas electrify the useful locations and the cut SFC2D completes the other sections. The RH2 is designed for recessed installation in furniture, while the SH1 is surface-mounted.
Can the installation be adapted to a large meeting table?
Yes. Configure the recessed length according to the furniture dimensions and distribute the electrified areas according to the seats to be served. Prepare the configuration and connection with a person qualified in electricity.
Can RJ45 sockets be added?
Yes, via DS4. The RJ45 sockets are then fixed between two SFC3 segments or at the end of the installation, instead of a section of SFC2D. They cannot be moved along the rail: their location must be planned when configuring the installation.
Should the entire length be electrified?
No. SFC2D blanking panels close the sections without an SFC3 segment and are cut to achieve the desired length.
What are the integration dimensions?
The recess width is 7 cm, for a total profile width of 8 cm. It protrudes 2 mm from the support after installation and is therefore not completely flush. Consult the technical documentation for the other dimensions of the housing.
Is the RH2 designed for a partition?
No, it was developed for recessed installation in furniture. Any use in a partition requires a check of the material and the fixing method; it should not be considered compatible by default.
The RH2, to the measure of your furniture.
A recessed length adapted to the furniture and electrified areas where you need them.
| Characteristic | Value |
|---|---|
| Finishing | Brushed aluminum |
| Attachment type | Recessed |
| Available lengths | 150 cm |
| Brand | EUBIQ |
| Reference | 5010-0107-0015 |
FAQ10 Questions
FAQ – RH2 Recessed Modular Cable Trunking
What does it have in common with the SH1 cable trunking?
The modular principle is identical: use SFC3 segments to electrify the useful areas and complete the other sections with cut SFC2D. The RH2 is intended for recessing into furniture, not for room perimeter installation.
For what types of installations should you choose the RH2?
For furniture, desks, workstations, and large conference room tables. Adapt the recessed length to the furniture and distribute the electrified areas according to the number of places to be served.
How to obtain the desired length?
The 150 cm cable trunking can be cut. Complete the SFC3 electrical segments with SFC2D blanking sections cut to the required lengths to close the non-electrified sections.
Can RJ45 sockets be added?
Yes, via DS4 sockets. They are fixed between two SFC3 segments or at the end of the installation, in place of a section of SFC2D. Once installed, the RJ45 sockets cannot be moved along the rail. Plan their location when assembling the installation.
How to make the cuts?
A hacksaw is suitable for aluminum. For a more professional cut, use a circular saw equipped with a blade suitable for aluminum. Hold the pieces securely, follow the tool's safety instructions, and deburr the edges after cutting. Do not confuse the adjustment of the cable trunking or SFC2D with a cut in the SFC3 electrical segment.
What is the recessing width?
The recessing width is 7 cm. The total width of the profile is 8 cm. After recessing, the profile protrudes 2 mm from the support: it is not completely flush. See the technical documentation for the other dimensions of the housing and the fixings.
What components are required?
The bare cable trunking must be completed with SFC3 segments, SFC2D blanking sections, end caps, EUBIQ sockets, and the fixing and connection elements suitable for your configuration. For RJ45 sockets, use DS4 sockets in a fixed position between two SFC3 segments or at the end of the installation, replacing the SFC2D in that location.
Which types of sockets are compatible?
The SFC3 electrified areas are intended for EUBIQ sockets, including models corresponding to the different types of sockets by country. They do not directly accept standard wall sockets from other brands.
Can the RH2 be installed in a partition?
The RH2 is designed for recessing into furniture, not for partitions. Any use in a partition requires checking the material of the support and the method of fixing, without assuming automatic compatibility.
Who performs the connection?
The electrical installation must be carried out without power by a person qualified in electricity, following the component documentation.
